Union Cross manufacturer
Manufacturer of Union Cross, Union Tee, Reducing Union, Bulkhead Union, Union, Union Elbow, Union Cross in India
Manufacturer, stockist & suppliers of 304 stainless steel Union Cross, ss 304/316 Reducing Union, ss 304/316 Bulkhead Union, Union Tee, Union, Union Elbow, Union Cross
Divine Metal’s premium collection of instrumentation tube fittings are ideal for a diverse range of industries, including process oil and gas, petrochemical, power generation, military, pharmaceutical, and more. Divine Metal is your superior alternative to Swagelok fittings & Parker A-lok. Components are fully interchangeable with Swagelok. We offer an assortment of Union Cross & all instrumentation compression tube fittings in a range of corrosion resistant alloy materials, including 316 Stainless Steel, 6Mo, Alloy 400, Alloy 825, Alloy 625, Copper, Brass, Titanium and more.
Contents:
About Divine Metal Union Cross
Ferrule Fitting of high quality and precision finishing are manufactured by Divine Metal are are sold under our brand Divine Metal Ferrule Fitting. We manufacture both single ferrule and double ferrule fittings. Popular brands include Swagelok and Parker. Divine Metal Union Cross is fully interchangeable with Swagelok & Alok fittings.
Divine Metal Ferrule fitting are manufactured in Stainless steel and Alloy steel grades. Most poplular stainless steel grades include Stainless steel 304 & Stainless steel 316. Alloy steel grades include , Monel, Inconel, Alloy 600 & 825, Hastelloy 276, Duplex Steel , Super Duplex Steel, 254 SMO etc. Ferrule fittings are also manufactured in copper & brass.
Divine Metal Ferrule fitting are manufactured to sustain high pressures of upto 6000 psig. Fittings come with a product replacement warranty of 1 year and have inclusive Mill test certificate by Divine Metal.
|

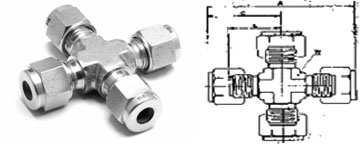

Imperial Tubing |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube O.D (mm) |
Part Number | A | C | L | W (inch) |
Min. bore | |||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||||
| 1/8 | 2UC2 | 1.81 | 46.0 | 0.91 | 23.0 | 0.66 | 16.8 | 7/16 | 0.09 | 2.3 | |
| 3/16 | 3UC3 | 1.88 | 47.8 | 0.94 | 23.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 | |
| 1/4 | 4UC4 | 2.03 | 51.6 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 | |
| 5/16 | 5UC5 | 2.21 | 56.6 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 | |
| 3/8 | 6UC6 | 2.27 | 57.7 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 | |
| 1/2 | 8UC8 | 2.71 | 68.8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 | |
| 5/8 | 10UC10 | 2.89 | 73.4 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 | |
| 3/4 | 12UC12 | 3.09 | 78.5 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 | |
| 7/8 | 14UC14 | 3.27 | 83.1 | 1.63 | 41.4 | 1.25 | 31.8 | 1.5/16 | 0.75 | 19.1 | |
| 1 | 16UC16 | 3.82 | 97.0 | 1.91 | 48.5 | 1.44 | 36.6 | 1.5/16 | 0.88 | 22.4 | |
|
Metric tubing |
|||||||||||
| Tube O.D (mm) |
Part Number | A | C | L | W (inch) |
Min. bore (mm) |
|||||
| mm | mm | mm | |||||||||
| 3 | 3MUC | 46.8 | 23.4 | 16.8 | 7/16 | 2.4 | |||||
| 4 | 4MUC | 48.2 | 24.1 | 17.5 | 7/16 | 3.0 | |||||
| 6 | 6MUC | 51.6 | 25.8 | 18.3 | 7/16 | 4.8 | |||||
| 8 | 8MUC | 56.2 | 28.1 | 20.6 | 9/16 | 6.4 | |||||
| 10 | 10MUC | 66.0 | 33.0 | 25.4 | 3/4 | 7.9 | |||||
| 12 | 12MUC | 69.4 | 34.7 | 24.6 | 3/4 | 9.5 | |||||
| 16 | 16MUC | 72.6 | 36.3 | 26.2 | 7/8 | 12.7 | |||||
| 18 | 18MUC | 79.0 | 39.5 | 29.4 | 1.1/16 | 15.1 | |||||
Union Cross features
Features the Divine Metal® tube fitting has been specifically designed for use on instrumentation, process and control systems, analyzers, and environmental equipment employed in chemical, petroleum, power generation, and pulp and paper plants. Divine Metal® tube fittings have also been used extensively in other applications and industries wherever high reliability and quality are required.
| Body | Sleeves Size |
|---|---|
| Cross Fitting for 1″ or 25mm | No Sleeves |
| Cross Fitting for 1-1/2″ or 38mm | 1/8″ |
| Cross Fitting for 1-1/4″ or 32mm | 3/16″ |
| Cross Fitting for 1/2″ or 12mm | 1/4″ |
| Cross Fitting for 1/4″ or 6mm | 5/16″ |
| Cross Fitting for 1/8″ | 3/8″ |
| Cross Fitting for 2″ | 1/2″ |
| Cross Fitting for 3/16″ | 5/8″ |
| Cross Fitting for 3/4″ or 18mm | 3/4″ |
| Cross Fitting for 3/8″ or 10mm | 7/8″ |
| Cross Fitting for 5/16″ or 8mm | 1″ |
| Cross Fitting for 5/8″ or 16mm | 1-1/4″ |
| Cross Fitting for 7/8″ or 20mm | 1-1/2″ |
Union Cross benefits
- Union Cross are fully interchangeable with Swagelok.
- Manufactured to an ASME Quality Certificate SPC is a feature of the QA process.
- High quality silver plated threads on nuts to ensure no galling on the body threads.
- Divine Metal Suparcase Ferrule for corrosion resistance.
- Gaugeable Bodies.
- Tube fittings supply with DIN, ISO, EN, SAE, MA certificate
- Zero leakage even under tough working conditions
- Good high-pressure/corrsion/extreme temperature resistance
- Simple to operate and save time and cost because of the usage of elastic seal
- Widely used throughout the world
- It can be reused.
- Leak-proof joints capable of satisfying high pressure vacuum and vibration application
Union Cross price
- 1/2 stainless steel 304 316 double way bulkhead union tube
US $0-15 / Set (FOB Price) - weld fittings, tube to butt weld, double ferrule compression tube fittings
US $2-5 / Piece (FOB Price) - 1/8"-1" stainless steel compression tube fitting,union, tube OD
US $0.5-3 / Piece (FOB Price) - double ferrule compression tube fitting,equal union
US $2-12 / Unit (FOB Price) - ss316 double ferrule fitting high pressure tube fitting 3/8" straight union
US $3-25 / Piece (FOB Price) - Titanium Gr 5 Stainless Steel Double ferrule Compression Tube Fittings : Bulkhead Union
US $15-150 / Piece (FOB Price) - Steel Compression Tube Fitting,bulkhead union
US $15-150 / Piece (FOB Price) - Reducing Union, compression tube fitting
US $2.5-8 / Piece (FOB Price) - Equal Union,Ferrule Tube Fitting
US $0-25 / Set (FOB Price) - Brass Compression Tube Fitting,bulkhead union
US $15-150 / Piece (FOB Price) - stainless steel 1/2" swagelok style compression fitting
US $15-150 / Piece (FOB Price) - stainless steel Double Coupling Cross Union
US $1-15 / Piece (FOB Price) - stainless steel high pressure compression union elbow
US $5-10 / Piece (FOB Price)
